North Shore Projects

Concrete Batching and Recycling

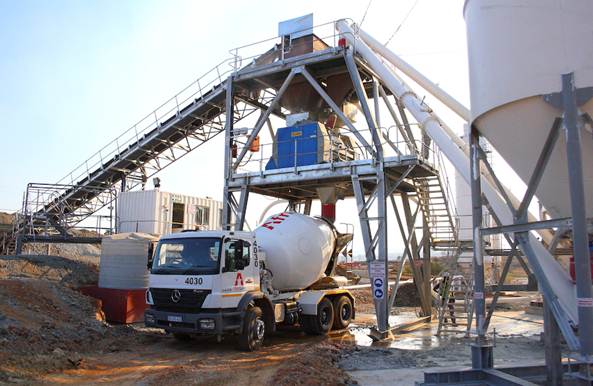

image001Portable wet batch plant designed by North Shore Projects for (Group 5 Spring Grove Dam Project). The silos, screw conveyors, ELBA mixer and linear ground bins were existing and incorporated into the new plant. The plant design capacity is 100 cubic meters per hour of concrete or RCC.

This configuration is available as a complete new plant for the 2,25 cubic meter mixer with a capacity of 100 cubic meters per hour or alternately a 3,00 cubic meter mixer with a capacity of 160 cubic meters per hour. Larger plants can be supplied and would be available on request.

Our standard plants are equipped with BHS mixers but any single or double shaft mixer can be utilized.

The plants are completely designed and built in South Africa thus allowing a number of configurations and options. The plant can be configured with an optional mixer by-pass which allows dry batching, yielding a substantial saving in power consumption and liner replacement.

All our plants come equipped with very generous access platforms and stairways allowing for easy access for normal running and maintenance. All bins and chutes are fabricated from heavy steel plate and are lined with VRN400 bolt in liners. All replacement liners are easily available and installed. All mechanical items are standard off the shelf and are easily replaced thus virtually eliminating down time.

All conveyor mechanical parts conform to SANS and SABS, motors and gearboxes are standard units and can be easily repaired or replaced.

North Shore does offer a maintenance contract which covers supply, replacement and installation of all liners, wearing parts and equipment.

The linear ground bins have an optional single aggregate scale or multi scale system for high capacity plants. The unit is supplied standard with four bins, each bin is supplied with four discharge gates and central flanges in order to fit the optional bin divider plates. The linear ground bin is supplied as a single skid mounted unit and can easily be positioned on a compacted sub-base. The unit includes fabricated retaining walls and fold out wing walls.

Cement and ash silos can be configured with the silo mounted horizontally in the form of a mobile trailer or vertically and skid mounted. Silo capacities range from 60 to 300 ton, larger silos are available on request.

image002 image005 image006
image003 image004

North Shore Projects Concrete Re-cycle Plant; These re-cycle plants are available in a number of sizes and can re-cycle from five to thirty cubic meters per hour. The system utilises a rolling action and wet separation of the fines in contrast to a high wear, sliding and scraping process.


image008  image010  image009

Afrisam Ottawa Concrete Batch Plant upgrade by North Shore Projects

Complete plant upgrade including three new silos, cement scales, feed bin, chutes and air slides. The plant was upgraded from three cubic meter to eight cubic meter single batch. The air-slides allowed a shortened batch cycle time.

North Shore Projects has had vast experience in modifying and upgrading existing plant as well as the supply of complete new batch plant. Our 3D design capabilities are extensive and we are confident that we can find a solution to virtually any challenge.

Our site measuring and surveying equipment utilises the latest in infrared and laser measuring technology allowing us the confidence and accuracy required for precise layout work.
